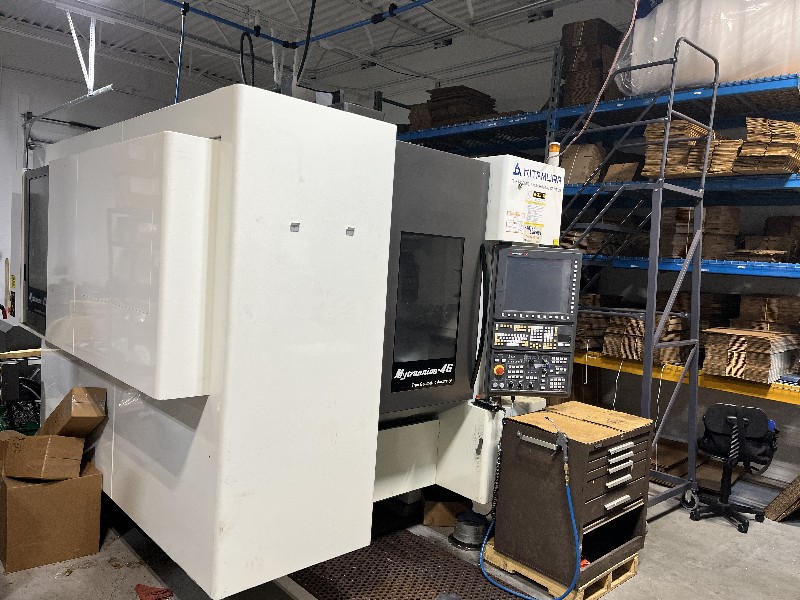

Kitamura Mytrunnion 4G 5-Axis Vertical Machining Center

Kitamura Mytrunnion 4G 5-Axis Vertical Machining Center

Kitamura Mytrunnion 4G

Age: 2016

Stock Number: 1628

Catalog Specifications (5) Axis Capabilities New (Z) Axis Encoder and Brake


Click to view larger photo

SpecificationDescription
Table Size400 mm

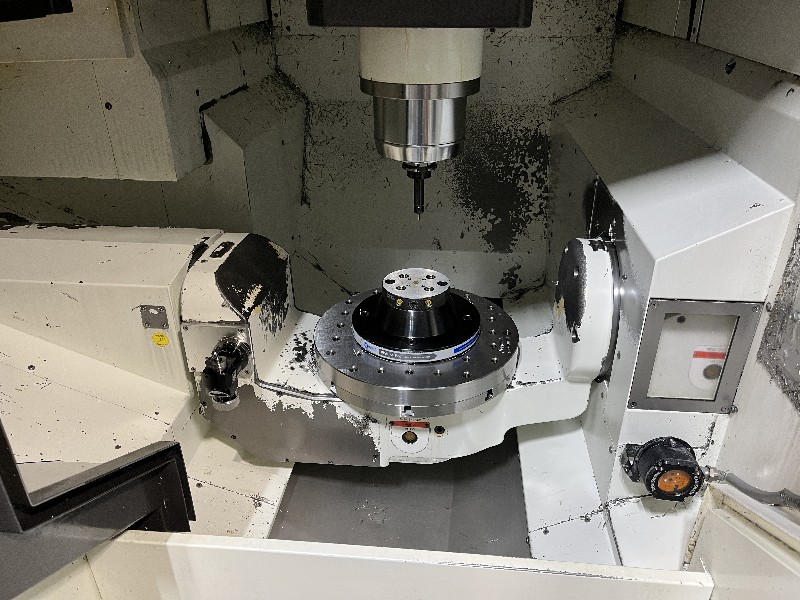

Table Style5 Axis Trunnion
X Travel24.02"
Y Travel24.02"
Z Travel19.68"
A Axis150 Degrees
C Axis360 Degrees
Spindle Speeds15,000 RPM
Spindle TaperCAT 40

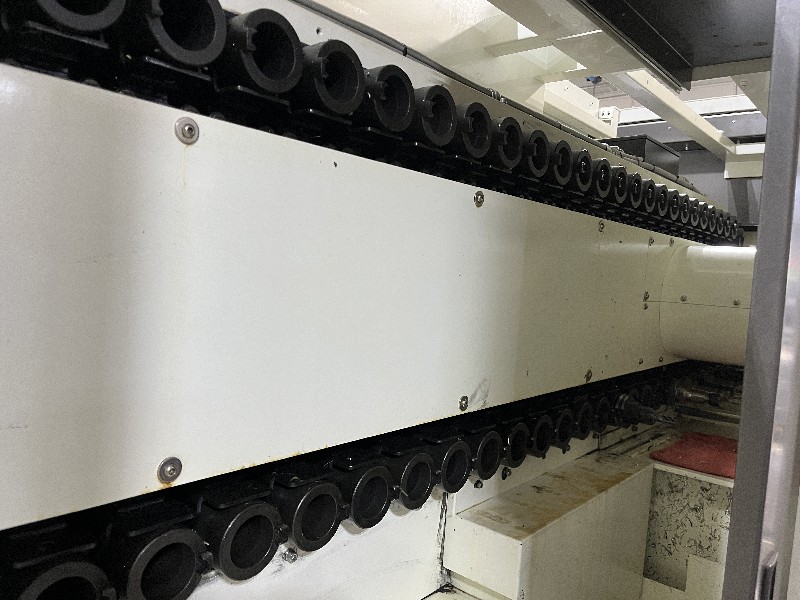

Tool Capacity60 ATC
Spindle MotorAC 15 KW
Rapid TraverseX&Y-1968 IPM, Z-984 IPM
Table Capacity441 lbs
Tool Change Time2.2 Sec
Table Indexing A & C Axis0.001 Degree
Dimensions98" L x 148" W x 108" H
Approx Weight:19842.00 lbs

Equipped With:

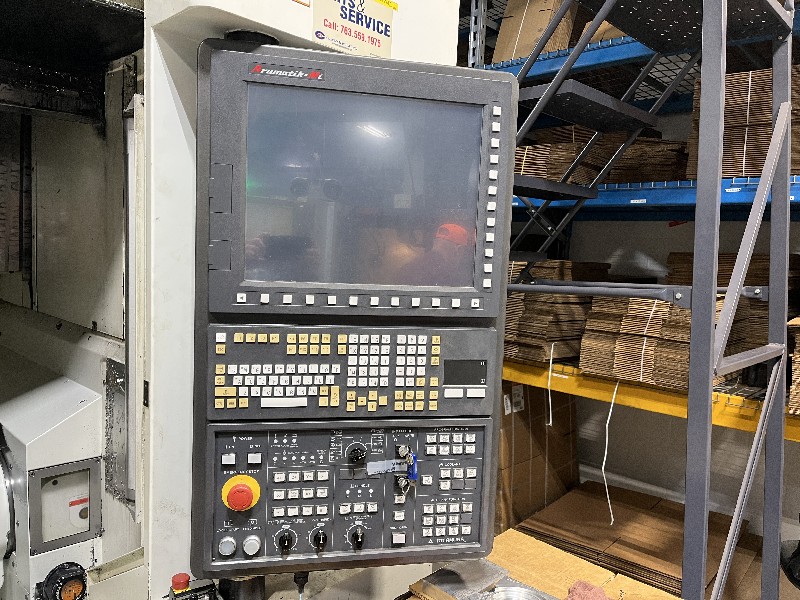

Arumatik Mi Control
Remote Jog Handle
Through Spindle Coolant
Flood Coolant
Tool/Parts Renishaw Probing

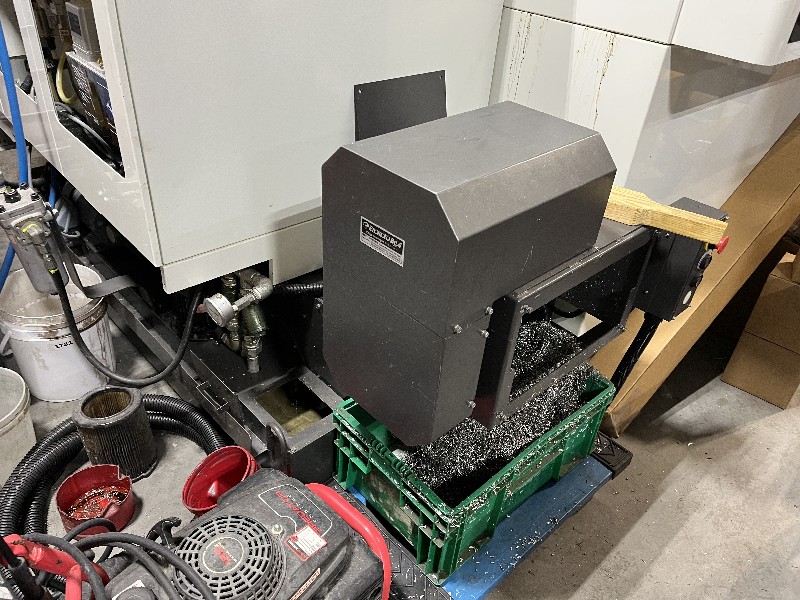

Chip Conveyor
Spindle Chiller
All Available Manuals
Machine Wired 220v/3Ph
